TECHNICAL DATA

POLE TYPES: The standard poles increase in diameter and 15 mm per meter from top to the bottom. The largest pole diameter is 500 mm and the larger sizes are cylindrical

Example: Pole top diameter 130 mm

Pole length 9.30 m

Pole bottom diameter 237 mm

WEIGHTS: Depend on the concrete product tolerances and used as the basis for pricing the transportation and installation charges

GROUNDING NUTS: The m ½ nut welded to the main equipment is located at the level of the traverses from the top and (~+0.20m) above the foundation at the bottom

INSULATOR NUT: As the middle conductor has to be fixed on top of the pole in the medium voltage lines, a 1” nut is welded on top of the pole to secure the insulator bar

LADDER NUT: As an option the poles may be fitted with nuts for installing portable rungs with 50 cm intervals and the supplemental charges for the foregoing is calculated according to the pole length and quoted

LIGHTING CONSOLE INSTALLATION: When installation of lighting consoles on the concrete poles is desired, the height of the light, console type and the cable connection type (internal and external) has to be indicated. Separate lighting poles have to be manufactured for lighting purposes

TYPE – TIP STRENGTH: The poles are marked to show their Type and Length. The tip strength of the pole is calculated by multiplying the type mark by 100 kg. For example, a 2x12 pole means a tip strength of 2x100=200 kg tip strength and 12 meters of length

DUAL POLES: Dual poles are used when non-standard pole strength is required. The tip strength of a dual-pole is 4 to 7 times higher than a single pole used in one direction and two times higher in the other direction

SPECIAL LENGTH POLES: The poles longer than the standard lengths given in the list are specially manufactured

Standart Concrete Pole

Top Diameters Table

Length
Type 9,30 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Length
Type

1,5 135 135 135 1,5

2 " " " 135 2

2,5 " " " " 2,5

3 180 180 180 180 225 225 225 3

3,5 " " " " " " " 3,5

4 " " " 225 " " " 225 225 225 4

5 " " " " " " " " " " 225 225 5

6 " " " " " " " " " " " " 225 225 6

7 225 225 225 " " " " " " " " " " " 225 7

8 " " " 270 270 270 270 270 270 270 270 270 270 270 270 270 255 8

9 270 270 270 " " " " " " " " " " " " " " 9

10 " " " " " " " " " " " " " " " " " 10

11 " " " " " " " " " " " 315 315 315 315 315 360 11

12 315 315 " " " " " " " " " " " " " " " 12

13 " " 315 315 315 315 315 315 315 315 315 " " " " " " 13

14 " " " " " " " " " " " " " " " " " 14

15 " " " " " " " " " " " " " " " " " 15

16 " " " " " " " " " " " " " " " " " 16

17 " " " " " " " " " " " " " " " " " 17

18 " " " " " " " " " " " " " " " " " 18

19 " " " " " " " " " " " " " " " " " 19

20 360 360 " " " " " " " " " " " " " " " 20

21 " " " " " " " " " " " " " " " " " 21

22 " " " " " " " " " " " " " " " " " 22

23 " " " " " " " " " " " " " " " " " 23

24 " " " " " " " " " " " " " " " " " 24

25 " " " " " " " " " " " " " " " " " 25

26 " " " " " " " " " " " " " " " " " 26

27 " " " " " " " " " " " " " " " " " 27

28 " " 360 360 360 360 " " " " " " " " " " " 28

29 " " " " " " " " " " " " " " " " " 29

30 " " " " " " " " " " " " " " " " 30

31 " " " " " " " " " " " " " " " 31

32 " " " " " " " " " " " " " " " 32

33 " " " " " " " " " " " " " " 33

34 " " " " " " " " " " " " " 34

35 " " " " " " " " " " " " " 35

Bottom Diameters Table

Length
Type 9,30 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Length
Type

1,5 275 285 300 1,5

2 " " " 315 2

2,5 " " " " 2,5

3 320 330 345 360 420 435 450 3

3,5 " " " " " " " 3,5

4 " " " 405 " " " 465 480 495 4

5 " " " " " " " " " " 510 525 5

6 " " " " " " " " " " " " 540 540 6

7 225 225 225 " " " " " " " " " " " 540 7

8 " " " 450 465 400 495 510 525 540 540 540 " " " 540 540 8

9 410 420 435 " " " " " " " " " " " " " " 9

10 " " " " " " " " " " " " " " " " " 10

11 " " " " " " " " " " " " " " " " " 11

12 455 465 " " " " " " " " " " " " " " " 12

13 " " 480 495 510 525 540 540 540 " " " " " " " " 13

14 " " " " " " " " " " " " " " " " " 14

15 " " " " " " " " " " " " " " " " " 15

16 " " " " " " " " " " " " " " " " " 16

17 " " " " " " " " " " " " " " " " " 17

18 " " " " " " " " " " " " " " " " " 18

19 " " " " " " " " " " " " " " " " " 19

20 500 510 " " " " " " " " " " " " " " " 20

21 " " " " " " " " " " " " " " " " " 21

22 " " " " " " " " " " " " " " " " " 22

23 " " " " " " " " " " " " " " " " " 23

24 " " " " " " " " " " " " " " " " " 24

25 " " " " " " " " " " " " " " " " " 25

26 " " 525 540 540 540 " " " " " " " " " " " 26

27 " " " " " " " " " " " " " " " " " 27

28 " " " " " " " " " " " " " " " " " 28

29 " " " " " " " " " " " " " " " " " 29

30 " " " " " " " " " " " " " " " " 30

31 " " " " " " " " " " " " " " " 31

32 " " " " " " " " " " " " " " " 32

33 " " " " " " " " " " " " " " 33

34 " " " " " " " " " " " " " 34

35 " " " " " " " " " " " " " 35

Weight Table

Length
Type 9,30 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Length
Type

1,5 620 695 815 1,5

2 625 700 825 955 2

2,5 635 710 835 965 2,5

3 865 965 1120 1285 1860 2090 2335 3

3,5 870 970 1130 1295 1870 2100 2345 3,5

4 875 975 1135 1655 1875 2105 2350 2610 2890 3180 4

5 885 990 1150 1670 1890 2125 2375 2635 2910 3205 3515 3835 5

6 900 1005 1165 1685 1910 2145 2395 2660 2935 3230 3545 3875 4220 4570 6

7 1165 1290 1490 1700 1925 2165 2415 2680 2970 3265 3580 3905 4255 4610 4960 7

8 1175 1305 1505 2110 2380 2650 2955 3270 3595 3945 4300 4655 5010 5370 5725 6065 6215 8

9 1475 1630 1870 2120 2395 2680 2975 3290 3625 3970 4330 4685 5055 5415 5775 6135 6270 9

10 1485 1645 1885 2140 2410 2690 2990 3320 3645 4000 4360 4715 5080 5445 5820 6185 6325 10

11 1495 1655 1900 2150 2425 2710 3020 3335 3675 4025 4385 5395 5760 6140 6510 6880 7805 11

12 1825 2015 1910 2170 2440 2730 3035 3360 3695 4060 4430 5435 5800 6170 6555 6910 7840 12

13 1835 2020 2310 2615 2940 3275 3625 3985 4355 4720 5090 5460 5830 6200 6595 6970 7880 13

14 1640 2030 2320 2625 2950 3285 3640 4000 4375 4740 5115 5485 5860 6245 6620 7000 7935 14

15 1850 2035 2335 2635 2960 3300 3655 4030 4400 4770 5140 5530 5905 6285 6665 7045 7980 15

16 1860 2050 2345 2650 2975 3325 3685 4050 4420 4805 5180 5555 5935 6310 6720 7105 8050 16

17 1865 2060 2355 2660 2995 3340 3700 4065 4455 4830 5205 5585 5980 6365 6750 7140 8085 17

18 2975 2065 2360 2670 3010 3355 3755 4100 4475 4850 5230 5630 6015 6400 6790 7180 8130 18

19 1885 2075 2380 2690 3020 3365 3740 4115 4495 4885 5265 5650 6060 6455 6845 7240 8185 19

20 2245 2475 2390 2700 3045 3390 3755 4155 4515 4915 5300 5700 6095 6485 6880 7280 8240 20

21 2255 2480 2400 2720 3060 3405 3775 4170 4545 4940 5325 5735 6125 6520 6940 7355 8295 21

22 2260 2485 2410 2730 3070 3420 3790 4180 4565 4950 5365 5760 6155 6575 6990 7385 8345 22

23 2265 2490 2430 2745 3085 3440 3810 4205 4590 4980 5395 5795 6190 6615 7025 7430 8400 23

24 2275 2500 2435 2755 3100 3450 3840 4225 4610 5015 5445 5815 6245 6655 7060 7490 8445 24

25 2275 2510 2450 2780 3120 3480 3855 4265 4655 5050 5470 5875 6280 6690 7100 7530 8490 25

26 2285 2520 2880 3250 3640 4015 3875 4285 4680 5100 5500 5915 6320 8735 7160 7580 8530 26

27 2295 2335 2885 3260 3655 4035 3910 4305 4695 5125 5530 5945 6355 6770 7200 7620 8585 27

28 2300 2535 2895 3265 3655 4045 3940 4325 4745 5160 5565 6975 6400 6815 7245 7675 8625 28

29 2315 2550 2910 3280 3675 4055 3950 4350 4765 5170 5590 6000 6425 6850 7285 7710 8870 29

30 2320 2555 2910 3290 3885 4070 3965 4370 4805 5210 5630 6045 6475 6900 7335 7770 30

31 2330 2570 2935 3295 3695 4085 3995 4420 4815 5230 5645 6080 6505 5935 7380 31

32 2330 2570 2940 3315 3710 4115 4040 4440 4850 5270 5685 6120 6555 6985 7420 32

33 2340 2580 2950 3325 3730 4130 4070 4465 4880 5290 5725 6160 6595 7030 33

34 2350 2590 2960 3325 3745 4140 4075 4490 4905 5320 5755 6190 6620 34

35 2350 2605 2970 3345 3765 4160 4110 4520 4930 5355 5795 6230 6665 35

High Voltage Travers Weights

Load Bearing Stopping and End

Max
Moment 27000 50000 80000 125000 250000 70000 170000 320000 620000 750000 Max
Moment

Length
Type T / 27 T / 50 T / 80 T / 125 T / 250 N / 70 N / 170 N / 320 N / 620 N / 750 Length
Type

1,20 45 95 1,20

1,40 50 100 1,40

1,60 55 110 1,60

1,80 60 95 120 1,80

2,00 65 100 150 190 390 125 190 310 2,00

2,20 70 105 155 200 400 130 200 320 2,20

2,40 75 110 165 210 410 140 210 340 2,40

2,60 80 115 170 220 420 145 220 350 2,60

2,80 80 120 180 230 430 150 230 360 2,80

3,00 85 125 190 240 440 160 240 380 680 900 3,00

3,20 90 130 200 250 450 165 250 390 700 920 3,20

3,40 90 135 210 260 470 170 260 400 730 940 3,40

3,60 140 215 270 480 175 270 420 750 970 3,60

3,80 145 225 280 500 180 280 430 770 990 3,80

4,00 150 235 290 510 185 290 440 790 1010 4,00

4,20 240 300 530 295 460 820 1040 4,20

4,40 250 305 540 300 470 840 1060 4,40

4,60 255 310 560 305 480 860 1080 4,60

4,80 260 320 570 310 490 880 1110 4,80

5,00 270 330 590 315 500 910 1130 5,00

5,20 275 335 600 520 930 1150 5,20

5,40 285 340 620 530 950 1180 5,40

5,60 350 630 540 970 1200 5,60

5,80 360 640 550 1000 1220 5,80

6,00 365 650 560 1020 1240 6,00

6,20 375 660 1050 1240 6,20

6,40 670 1070 1260 6,40

6,60 680 1090 1280 6,60

6,80 690 1110 1300 6,80

7,00 695 1130 1320 7,00

7,20 705 1340 7,20

7,40 710 1360 7,40

7,60 715 1375 7,60

7,80 720 1390 7,80

8,00 725 1405 8,00

High Voltage Console Weights

Load Bearing Stopping and End

Max
Moment 27000 50000 80000 125000 250000 70000 170000 320000 620000 750000 Max
Moment

Length
Type KT / 27 KT / 50 KT / 80 KT / 125 KT / 250 N / 70 N / 170 N / 320 N / 620 N / 750 Length
Type

1,00 40 75 1,00

1,20 40 60 90 125 80 125 210 1,20

1,40 45 65 100 135 90 135 220 1,40

1,60 50 70 110 145 95 145 230 1,60

1,80 50 75 120 155 275 100 155 240 430 550 1,80

2,00 80 130 160 290 105 165 260 450 550 2,00

2,20 90 140 170 300 110 170 270 470 600 2,20

2,40 150 180 320 175 280 490 620 2,40

2,60 160 190 330 180 290 510 650 2,60

2,80 170 200 340 300 530 670 2,80

3,00 210 360 310 550 690 3,00

3,20 220 370 570 710 3,20

3,40 380 580 740 3,40

3,60 390 600 760 3,60

3,80 395 610 780 3,80

4,00 620 800 4,00

While the weights of traverse / console are calculating, it is needed to add 250 kg to the amounts on list because of the weights of connecting.

Low Voltage Travers And Console Weights

Type Weight ( kg ) Type Weight ( kg )

t -60 6 Kt12 - 80 25

T - 75 11 Kn2 - 100 50

n - 60 11 ZKn2 - 110 55

N - 75 13 14 - 140 40

N - 90 16 14 - 160 45

2N - 60 22 n4 - 170 70

2N - 75 26 n4 - 200 75

2N - 90 32 Zn4 - 220 80

PL - 250 700 Kt4 - 160 65

PL - 400 900 ZKn4 - 185 140

PRJ. PLATFORM 340 çn - 8 45

PRJ. PLATFORM 370 çn - 16 65

PRJ. PLATFORM 275

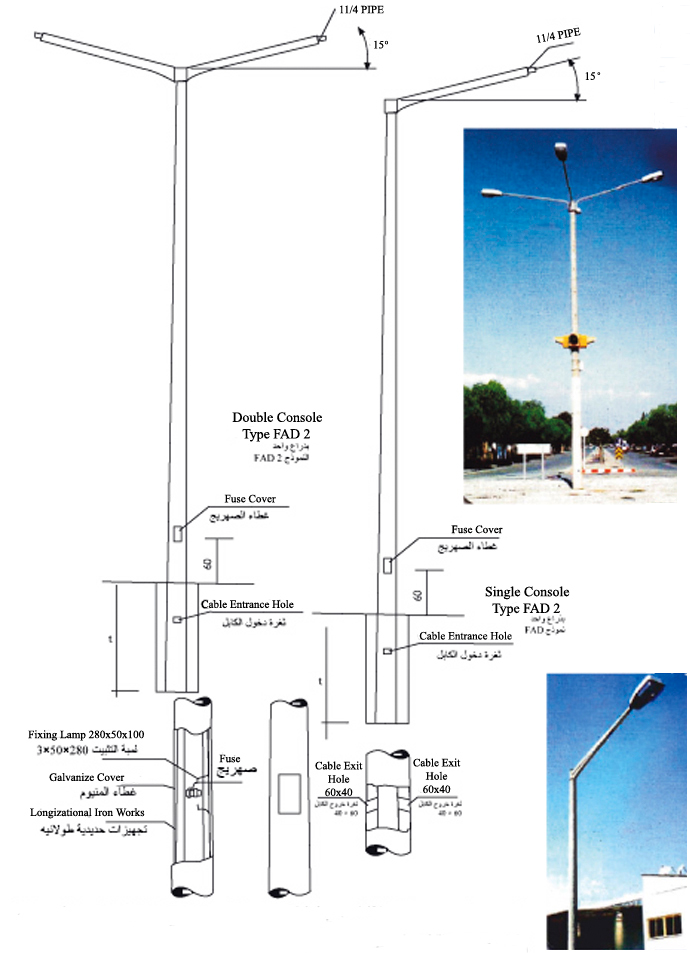

Lighting Poles with Top-Mounted Console and Underground Power Feed.

Type Fad

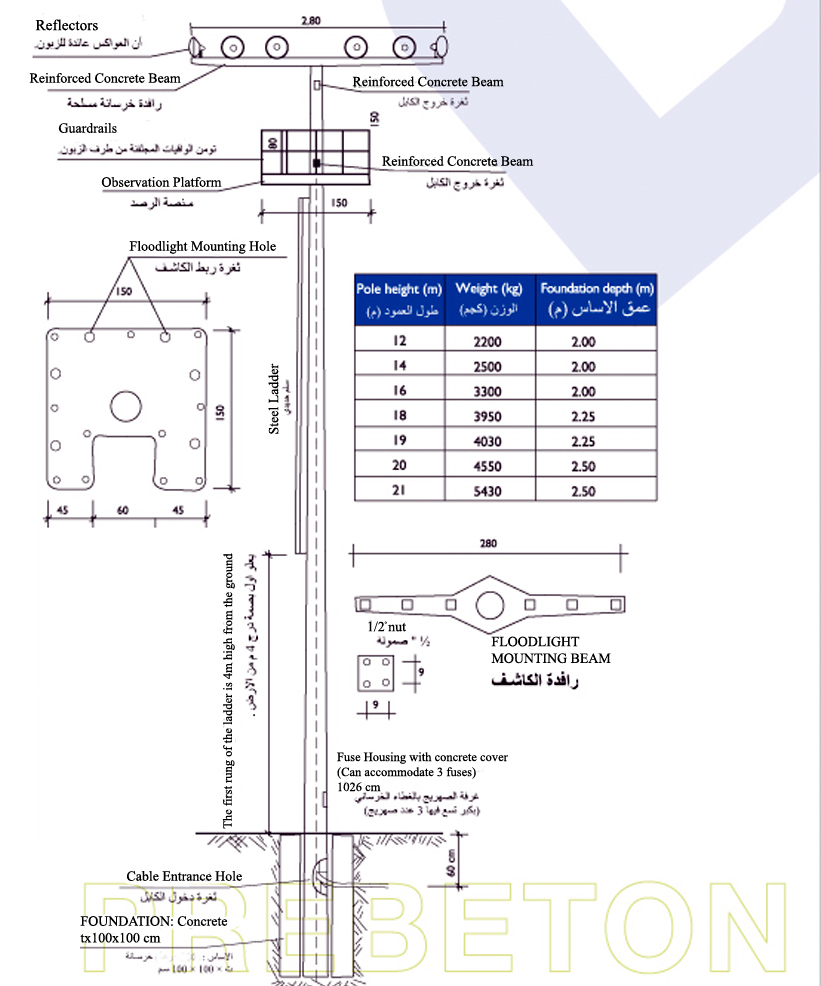

Floodlight Pole

Standart Concrete Pole

Basic Selection Table

Length
Type 9,30 10 11 12 14 16 18 20

1,50 0,60 0,60 0,60 0,60 0,60 0,60 0,60 0,60

2 0,60 0,60 0,60 0,60 0,60 0,60 0,60 0,60

2,50 0,70 0,60 0,60 0,60 0,60 0,60 0,60 0,60

3 0,80 0,60 0,60 0,60 0,60 0,60 0,60 0,60

3,50 0,90 0,60 0,60 0,60 0,60 0,60 0,60 0,60

4 1,00 0,60 0,70 0,60 0,60 0,60 0,60 0,60

5 1,10 0,70 0,80 0,60 0,60 0,60 0,60 0,60

6 1,20 0,80 0,90 0,60 0,60 0,60 0,60 0,60

8 1,40 1,00 1,10 0,60 0,60 0,70 0,60 0,60

10 1,50 1,20 1,20 0,60 0,70 0,90 0,60 0,70

12 1,70 1,30 1,40 0,70 0,90 0,90 0,70 0,80

16 1,90 1,50 1,60 0,90 1,00 1,20 0,90 1,00

20 2,20 1,70 1,80 1,10 1,20 1,30 1,10 1,20

25 2,40 1,90 2,00 1,30 1,40 1,60 1,30 1,40

30 2,60 2,20 2,20 1,40 1,60 1,80 1,50 1,60

FOUNDED 1,20 1,50 2,00 2,25
